Quick Release
Band Clamps

Fast, reliable, and secure fastening solutions for a wide range of diameters.

Rapidly adjust for frequent use
Corrosion-resistant mild steel and stainless steel options
Custom manufacturing available for unique specifications
Available with safety catches and spring-loaded claws

Group of various sizes and types of clamps.

Why Choose HardwareMFG Quick Release Band Clamps?

Our quick release bandclamps, sourced from Protex, are meticulously designed and manufactured to deliver unparalleled performance, durability, and safety in the most demanding applications.

Corrosion Resistance and Specialized Features

Our quick release bandclamps are available in both mild steel and stainless steel, providing exceptional corrosion resistance and long-lasting performance even in harsh environments. Mild steel clamps feature a silver-blue zinc passivate finish, while stainless steel models are supplied in their natural finish.

Wide Selection and Variety

We offer a comprehensive range of quick release bandclamps in various sizes and materials to cater to your specific needs, with diameters from 24mm (0.94 in) up to 695mm (27.36 in).

Customization Options

Need a quick release band clamp with unique specifications? Our custom manufacturing capabilities allow us to create clamps tailored to your exact requirements.

Expert Support and Resources

We provide exceptional customer service and are always ready to assist you with any questions or concerns you may have.

We know Quick Release
Band clamps!

And we know you want to find the right one, fast. That's why we've sorted our clamp series into easy-to-browse groups. Take a look below, and click through to find your perfect match.

SUPROCLAMPS®

This unique innovation..

Clamps with Safety Catch

These quick release....

Spring Claw Band Clamps

The spring claw range...

Rigid Claw Band Clamps

Standard & Heavy Duty...

SUPROCLAMPS®

This unique innovation adds quick release functionality to a high-strength T-Bolt style clamp. It incorporates 18mm, 20mm & 25mm bandwidths, with diameters from 17mm to 265mm (0.6693 in to 10.43 in).

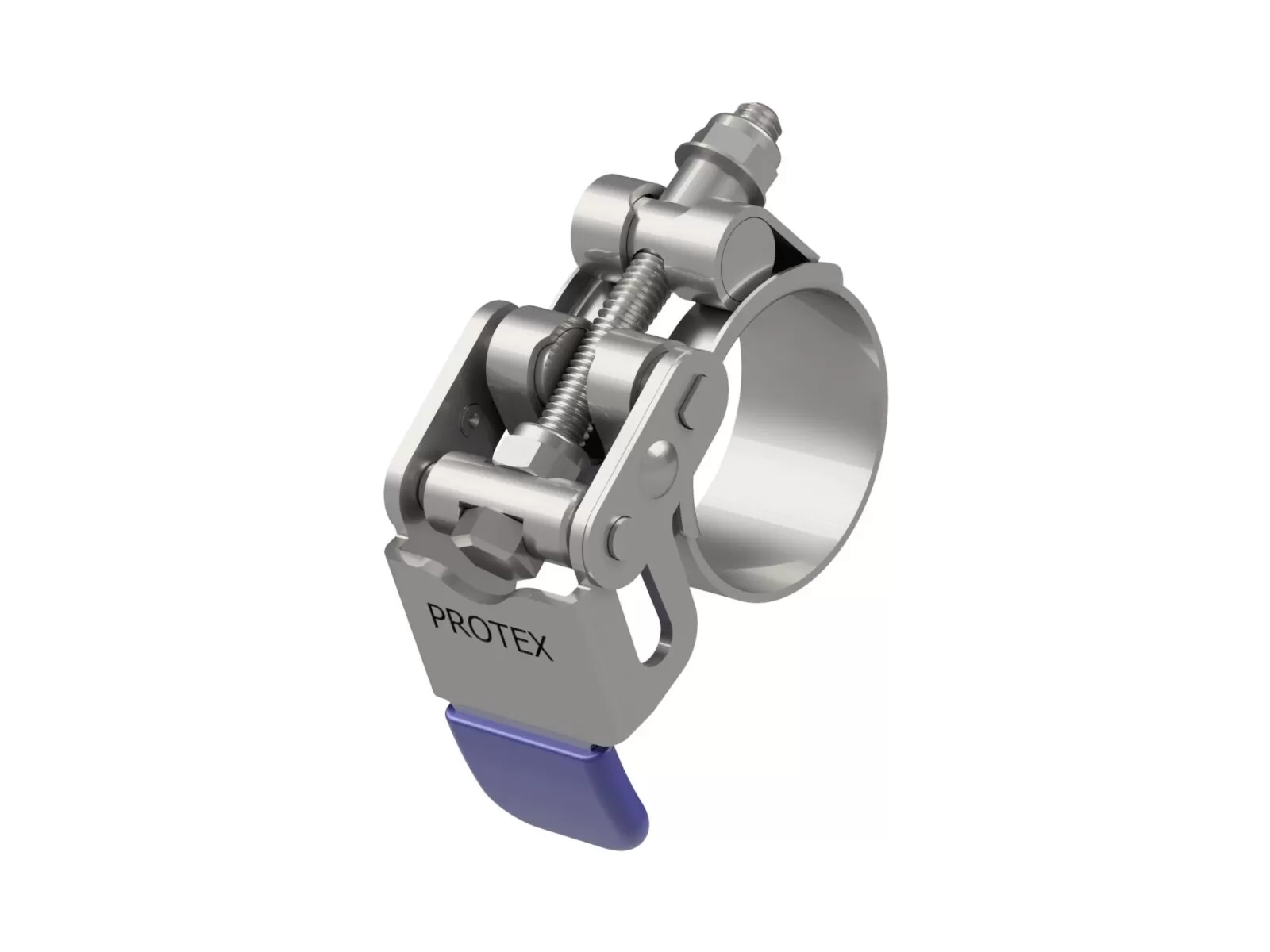

Image of a SuproClamp from the 570 Series

SuproClamp® 570 Series

Diameter Range: 17mm - 31mm
Diameter Adjustment: 2mm
Band Width: 18mm
Material: Stainless Steel type 304

Finish: Natural
Operating Torque: 0.5 Nm
Maximum Torque: 6 Nm
Weight: 0.0573 Kg – 0.0609 Kg

Image of a SuproClamp from the 670 Series

SuproClamp® 670 Series

Diameter Range: 32mm - 63mm
Diameter Adjustment: 3mm
Band Width: 20mm
Material: Stainless Steel type 304

Finish: Natural
Operating Torque: 0.5 Nm
Maximum Torque: 10 Nm
Weight: 0.1393 Kg – 0.1542 Kg

Image of a SuproClamp from the 770 Series

SuproClamp® 770 Series

Diameter Range: 68mm - 139mm
Diameter Adjustment: 3mm – 8mm
Band Width: 25mm
Material: Stainless Steel type 304

Finish: Natural
Operating Torque: 0.5 Nm
Maximum Torque: 15 Nm
Weight: 0.2941 Kg – 0.3474 Kg

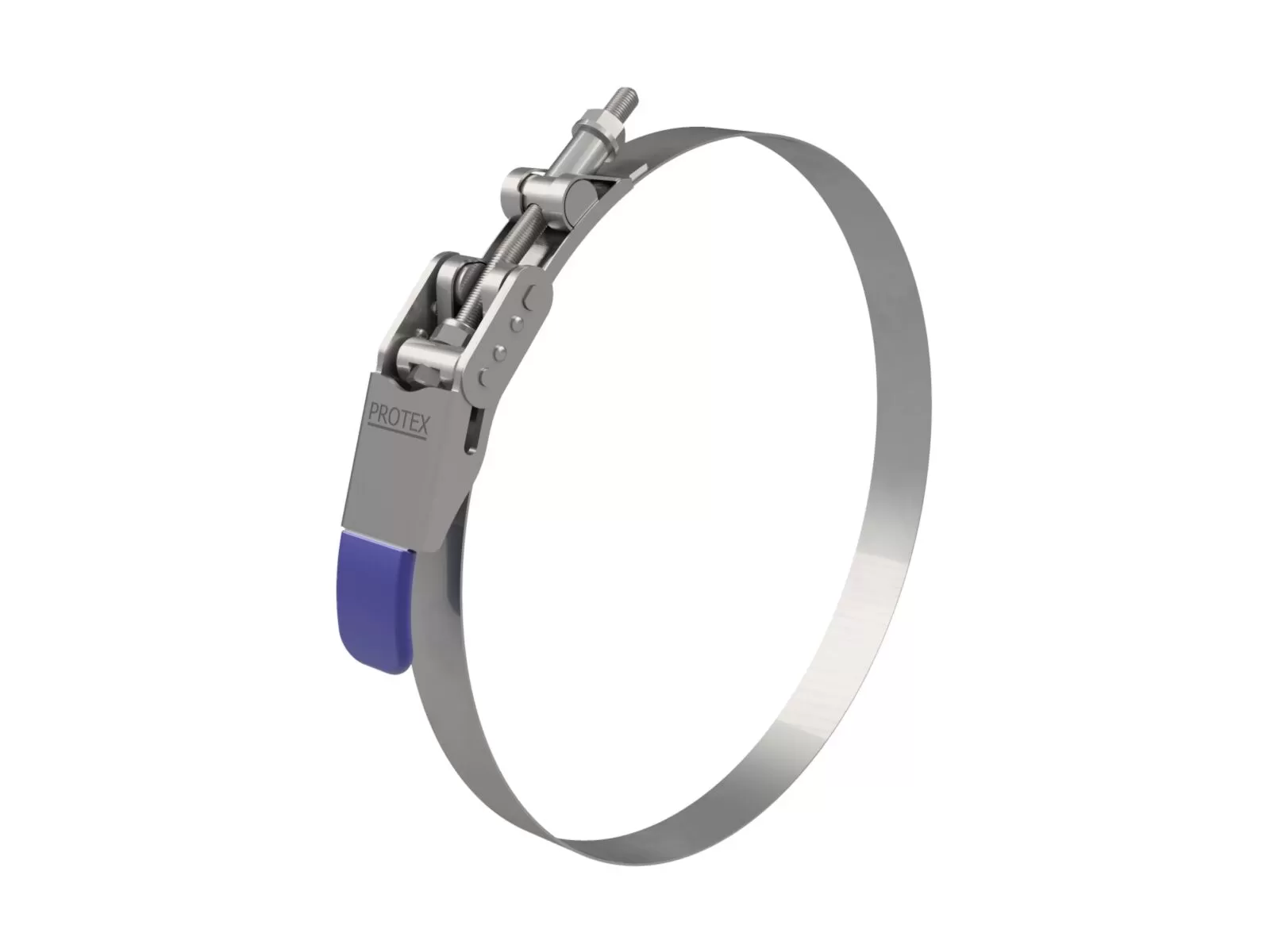

Image of a SuproClamp from the 780 Series

SuproClamp® 780 Series

Diameter Range: 140mm - 265mm
Diameter Adjustment: 8mm – 12mm
Band Width: 25mm
Material: Stainless Steel type 304

Finish: Natural
Operating Torque: 0.5 Nm
Maximum Torque: 15 Nm
Weight: 0.3919 Kg – 0.48 Kg

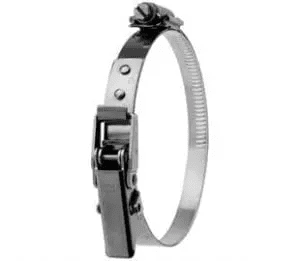

Clamps with Safety Catch

These quick release bandclamps feature a safety catch for secure fastening. This range is suitable for diameters from 24mm to 195mm (0.94 in to 7.68 in) and includes high torque bandclamps.

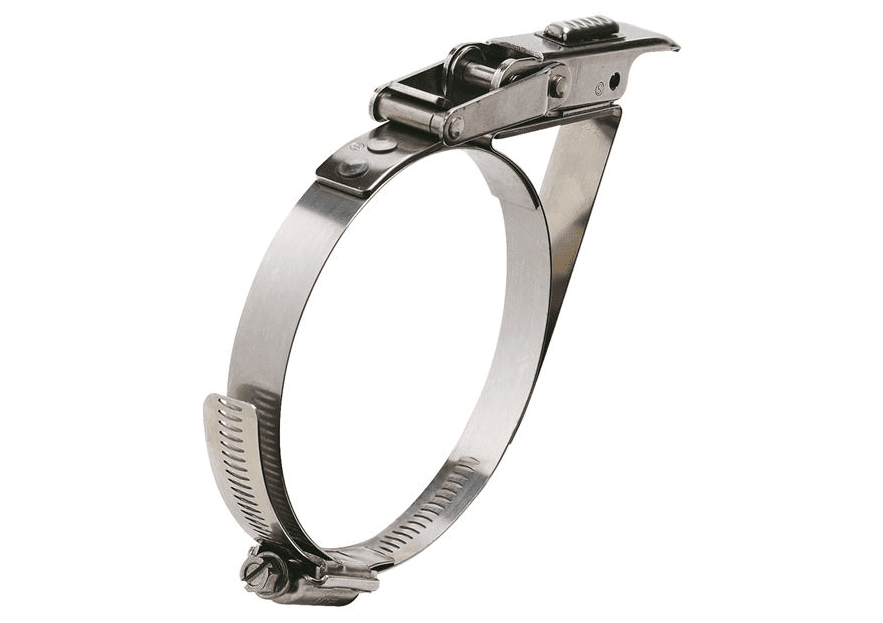

58-Series Clamps (Mild Steel, High Torque)

61-Series Safety Catch Band Clamps

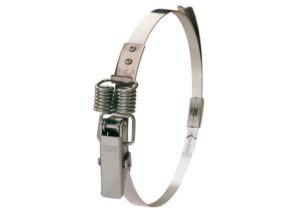

Spring Claw Band Clamps

The spring claw range features double torsion springs, making them an ideal spring-loaded solution for applications involving vibration, movement, or fatigue. These high torque, high grip clamps fit diameters from 70mm to 375mm (2.76 in to 14.76 in).

27SPG-HGR Series (Hi-Grip)

27SPG-HT Series (Hi-Torque)

Rigid Claw Bandclamps (Standard & Heavy Duty)

This range provides a high grip and high torque fastening solution. Standard versions are used for diameters from 70mm to 375mm (2.76 in to 14.76 in), while our Heavy-Duty clamps are the largest in our range, providing solutions for diameters from 250mm to 695mm (9.84 in to 27.36 in).

27-Series Rigid Claw Clamps (Standard Duty)

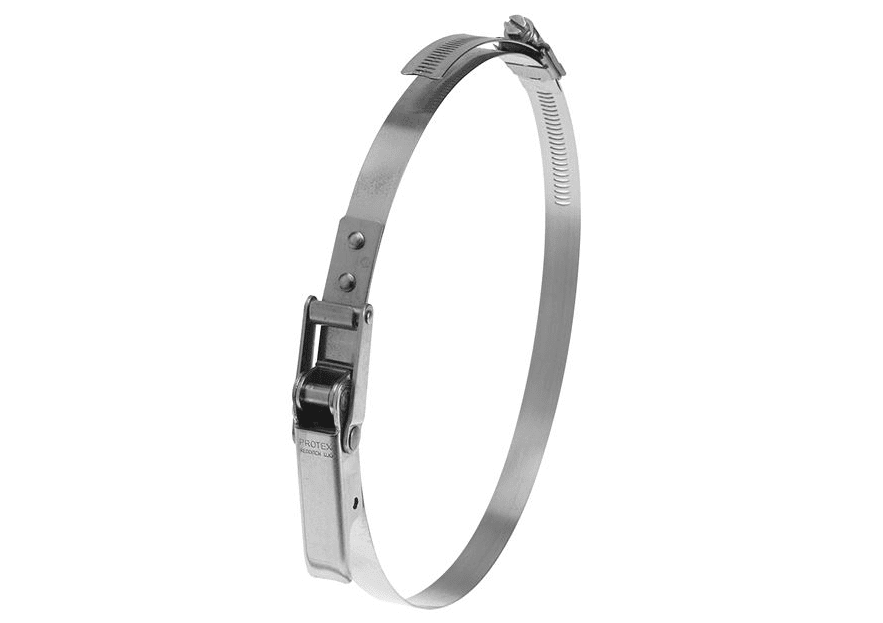

57-Series Rigid Claw Clamps (Heavy Duty)

Applications Across Industries

Our clamps are engineered for durability and reliability in a wide range of demanding industries.

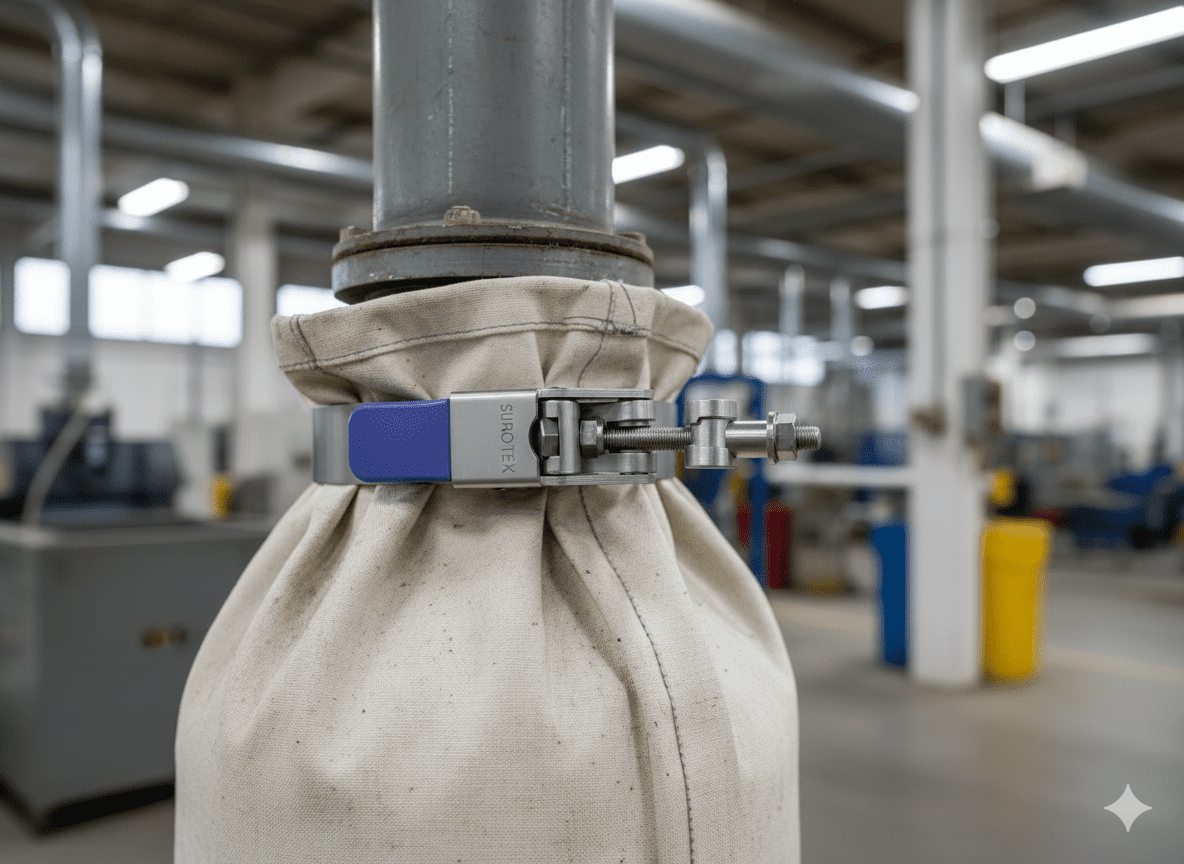

Example of SuproClamp in use, securing a filter bag to pipe system.

Industrial Processing & Maintenance

Quick release bandclamps are ideal for industrial processing and maintenance operations where there's a need to quickly change filter bags, dust bags, flexible tubing, and piping.

Specialized Applications

From spring-loaded solutions ideal for managing vibration to high-strength T-bolt style clamps (Suproclamps), our quick release bandclamps offer versatile fastening for a variety of specialized needs.

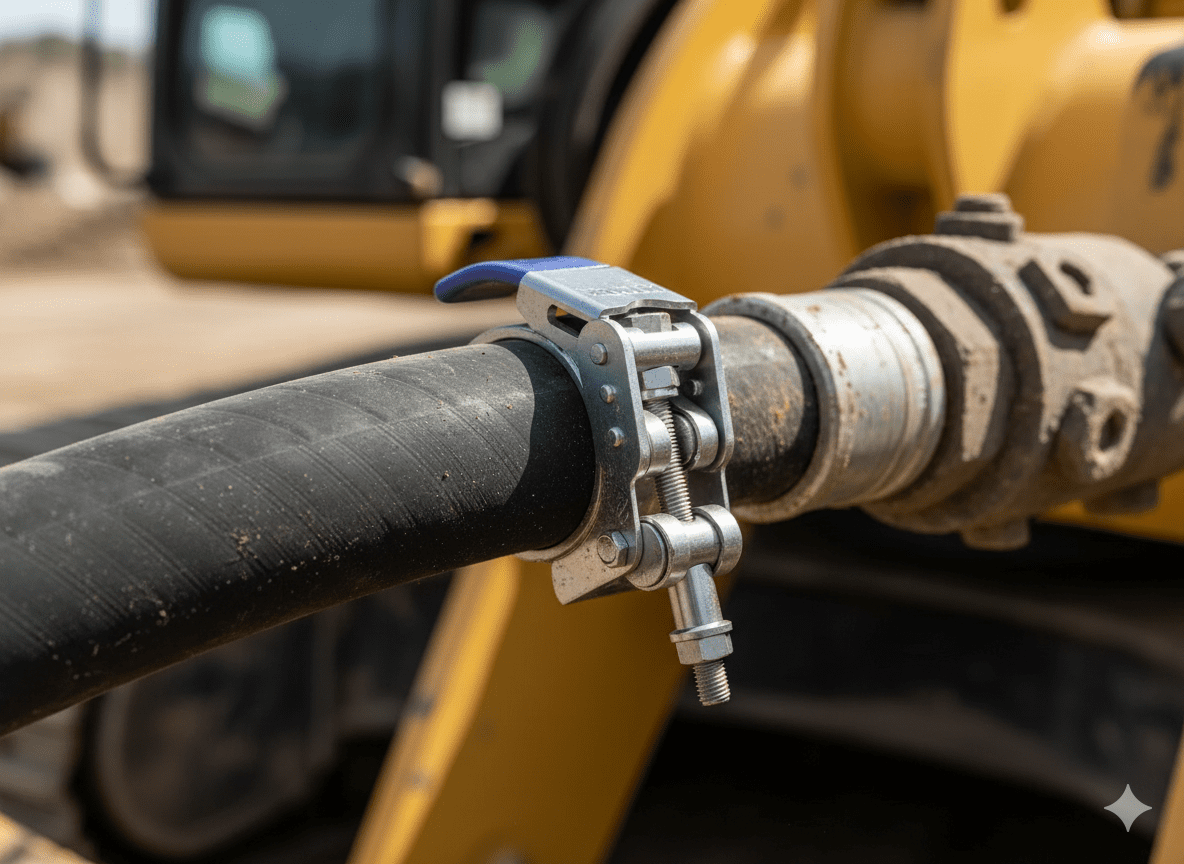

Example of SuproClamp in use connecting a hydraulic hose to metal fitting on a piece of heavy construction equiplment.

Heavy-Duty Applications

Our heavy-duty quick release bandclamps provide robust fastening solutions for demanding environments requiring strong and reliable connections, with ultimate strengths up to 450 kg.

Food, Beverage & Pharmaceutical Processing

The stainless steel construction of many of our band clamps makes them ideal for hygienic environments. They are used to secure transfer hoses, filtration equipment, and other components in processing lines that require frequent disassembly for cleaning and sanitation, where the quick-release function saves valuable time and effort.

FAQ's

Can you accommodate large production volumes?

Yes, we are equipped for both progressive and single die stampings and have press ratings from 75 to 400 tons to handle large production runs.

Do you offer custom solutions?

Yes, we specialize in custom manufacturing and can produce custom bent bolts, brackets, hangers, and stampings to customer specifications. We can also provide custom made bandclamps for light, medium, and heavy-duty applications.

What materials do you use?

We work with a range of materials, including 1008 to 1541 mild steel, 304 and 409 stainless steel, and other materials as requested. Our quick release bandclamps are available in mild steel with a silver-blue zinc passivate finish, and stainless steel in its natural finish

What are your tolerances?

We maintain a precision tolerance of (+/-) 0.015 inch.

More questions?
Contact us - We love talking quick release band clamps!
