Capabilities and Services

Screw MachiningTurningThread RollingGear HobbingGeneral MachiningFabricationCarriage BarsAdditional Services

See us in action

Wire & Tube Assembly

Multi Start 10 Acme Lead Screw Threaded 1" Inch Rod - 1

Multi Start 10 Acme Lead Screw Threaded 1" Inch Rod - 2

Blanking a Hinge Butt

Finishing Hinge Butt

Gear Hobbing

Screw Machining

High production, screw machining up to 2.4” diameter.

Screw machined parts we make:

  • Knurled pins
  • Machined plugs
  • Bronze acme nuts
  • High pressure grease gun heads and fittings
  • Aluminum hex drive clamp screws
  • Plastic furniture glides
  • Specialty pipe fittings
MO Machine Catalog
screw machining
Turning

Turning

Production turning up to 4.5” diameter. Large diameter turning up to 32” diameter x 200” long.
MO Machine Catalog

Thread Rolling

Capacity 1 1/2" diameter x 24 ft long

1"-10 10 start high lead Acme threaded rod for linear motion systems

  • J bolts
  • U bolts
  • Eye bolts
  • Specialty bolts
  • Large diameter threaded parts
MO Machine Catalog
Thread Rolling
Gear Hobbing

Gear Hobbing

  • Gears up to 20" diameter

  • Worms up to 6" diameter x 60" long

  • Acme Lead Screw thread up to 2” diameter x 20 feet long (Shorter lengths welcome)

  • Specializing in re-run lots of 1” diameter with 10 multi-start threads

  • Worm gear sets

  • Spur gears

  • Helical gears

  • Vertical Shaper for one-off gear projects

MO Machine Catalog

General Machining

Milling, drilling, tapping, boring, broaching.
MO Machine Catalog
General Machining
Fabrication

Fabrication

Cutting, bending, stamping, and welding.
MO Machine Catalog

Carriage Bars

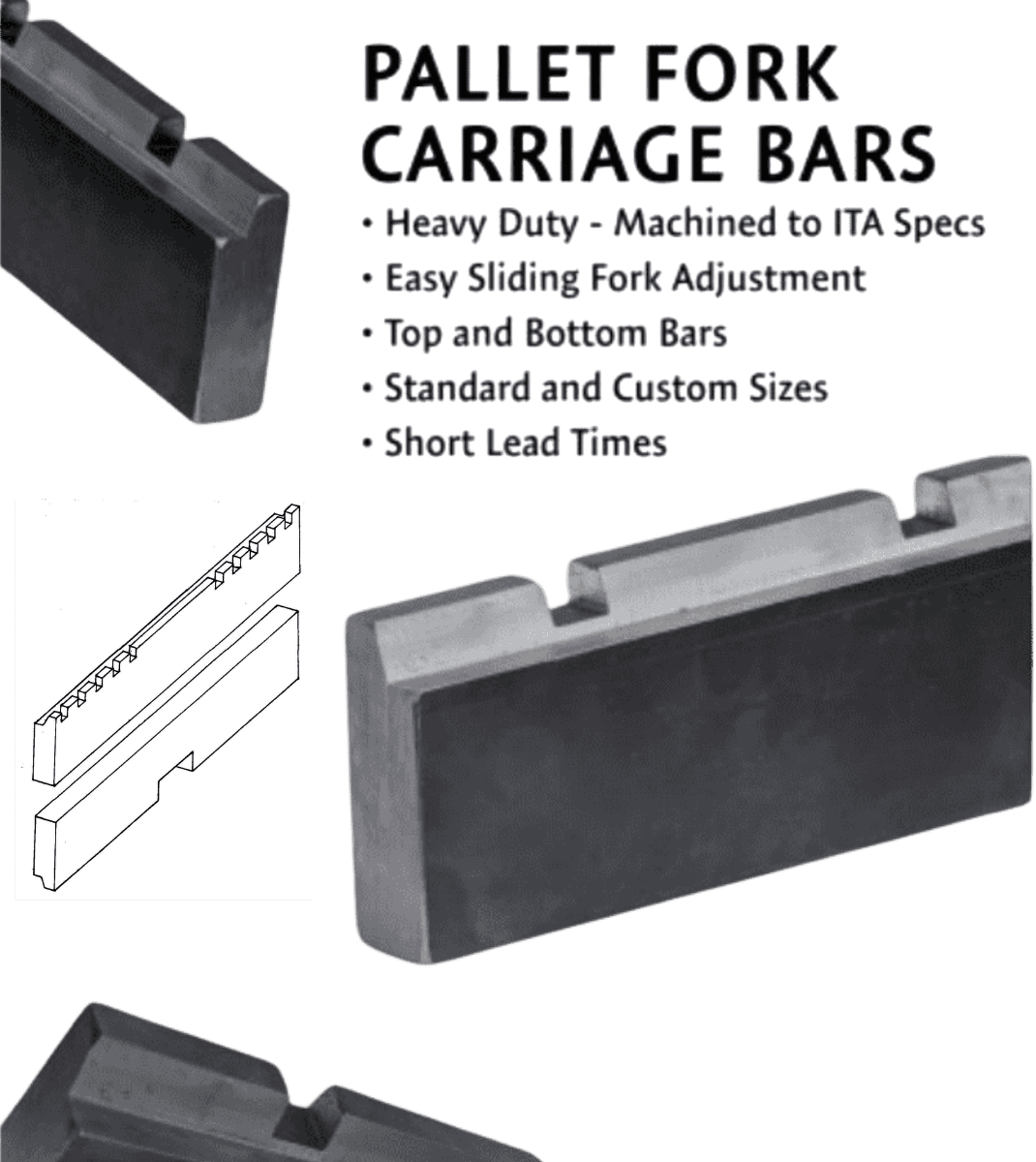

carriage bars flyer

FAQ's

1" x 3" x 48" Top or bottom - $86 each
1 1/4" x 3" x 60" Top or bottom - $118 each
Volume pricing starts at 10 pieces
Class 2 profile is standard = 5500 lb capacity
Class 3 profile (custom) = 11,000 lb capacity
Class 4 profile (custom) = 22,000 lb capacity
Grade 50 Hot Rolled Steel 70K PSI
Top bars have fork spacing notches 4" apart.
Bottom bars have a single wide center notch for fork removal.
Bars can be cut to any length required.
Provide us with width, height, length, and class, and we will send you a quote.
We will also need to know if you want Top or Bottom Bar and quantity.
3 bars or less ship UPS (on customer's account if possible) $75-$90 per pair
UPS cost per bar is $45 for 48" and $60 for 60"
4 or more bars, ship truck freight.
Truck freight costs $200+ depending on quantity.
We will send you an invoice and you can send a check by mail.
MO Machine Catalog
Additional Services

Additional Services

Finishing, assembly, storage, repair,
delivery.
MO Machine Catalog
