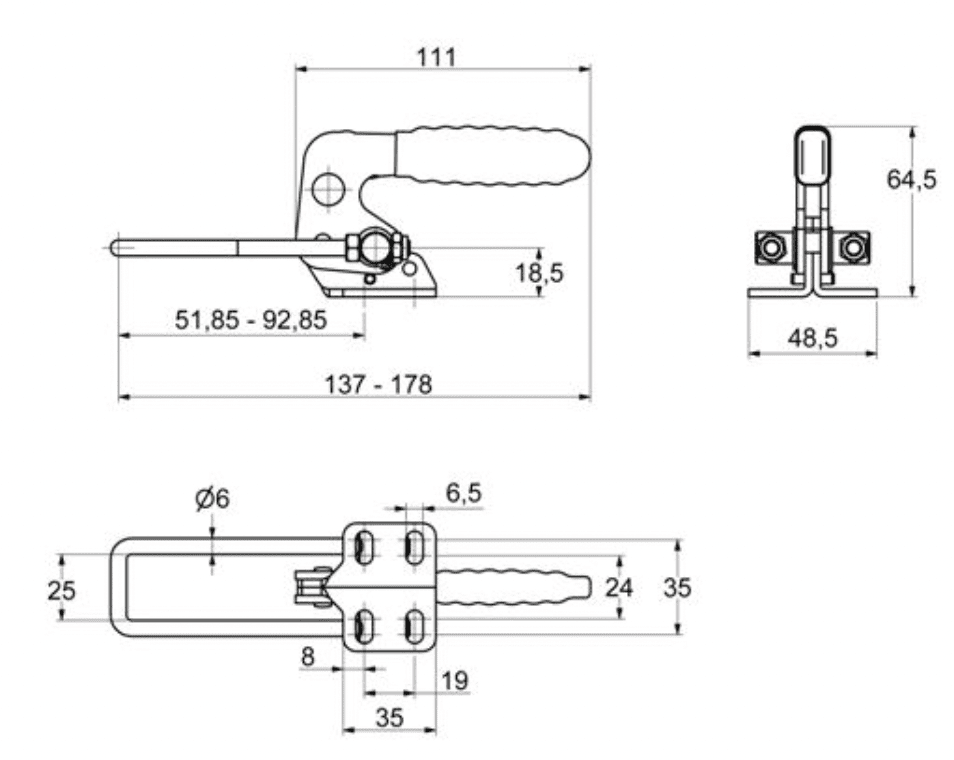

TLH-UBAB-064-100-MS Toggle Clamp Horizontal Draw Action

Horizontal Draw Action | Toggle Clamp

Mild Steel

Zinc Plate Passivate | Silver Blue

View at Protex.com

Toggle Clamp Horizontal Draw Action

High forces are generated as the clamps are locked into position. Fitted with adjustable claw.

Weight

0.2750 kg

Fix Hole Dia

6.50 mm

Clamp-Force

270 kgf
