2016

For use on trailers and truck bodies
Steel
Embossed | Zinc Plate Passivate
Length
16 in
Weight
2 1/2 lbs
fix Hole diameter
for 5/16" bolts

Manufactured from high quality steel. Embossed for greater strength. For use on trailers and truck bodies. Has wide bracket with three mounting holes. Three strap lengths available. Hinges supplied with non-removable pin for maximum security. Also available with removable pins. To order removable pins add the letter R to the catalog number. Example: 2008-R.

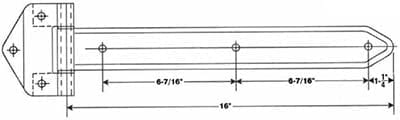

Bracket - 8 Ga. x 4-1/2" x 3" from center of pin

Strap - 8 Ga. x 2" x 8", 12" or 16"

Pin - 1/2" Dia. steel

1/8" Shim available.

Also available in 0.160 aluminum & 10 ga. plain or polished stainless steel.
