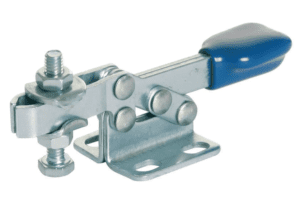

Operates on the over centre linkage principle. High forces are generated as the clamps are locked into position. Ideal for jigs, fixtures and general work holding. Fitted with adjustable arm.
|
Clamp |
Length |
Height |
Width |
Weight |
Mounting Hole | Clamp Diameter Range |
Load Rating |
|---|---|---|---|---|---|---|
 |
142
|
87
|
68
|
0.7299 kg
|
8.5 mm
|
430 kgf
|
 |
142
|
87
|
68
|
0.671 kg
|
8.5 mm
|
430 kgf
|
 |
142
|
87
|
68
|
0.671 kg
|
8.5 mm
|
430 kgf
|
 |
319-354
|
128
|
80
|
2.1 kg
|
10.5 mm
|
1700 kgf
|
 |
319-354
|
128
|
80
|
1.9 kg
|
10.5 mm
|
1700 kgf
|
 |
147-181
|
41
|
40
|
0.108 kg
|
5.2 mm
|
180 kgf
|
